10-Port
Switch
4x Fibre SFP
6x Copper RJ45
Zero Config Required
Linear Power Supply
10M External Clock Input
Aluminium Chassis

Why LUMIN N1

LUMIN N1 brings flagship-grade network isolation to your entire Hi-Fi system. Building on the huge success of LUMIN L2, this dedicated 10-port switch provides even greater connection flexibility and combines high-capacity with a zero-noise philosophy.

With 4x SFP fibre ports and an external 10M clock input, it provides the ultimate clean-data foundation for LUMIN owners who demand the best from their network.

A noise-free foundation for your network

  • 6x Copper RJ45 ports and 4x Fibre SFP ports for massive system flexibility and complete electrical isolation for the most sensitive equipment
  • 10M External Clock Input allows for synchronisation with either LUMIN U2X or an external master clock for absolute timing accuracy
  • Internal Linear Power Supply featuring an extra-large toroidal transformer
  • Zero configuration required
  • Aluminium chassis construction based on D3 and U2 Mini
  • Available in the same anodised black or raw silver finishes as the rest of the LUMIN range.

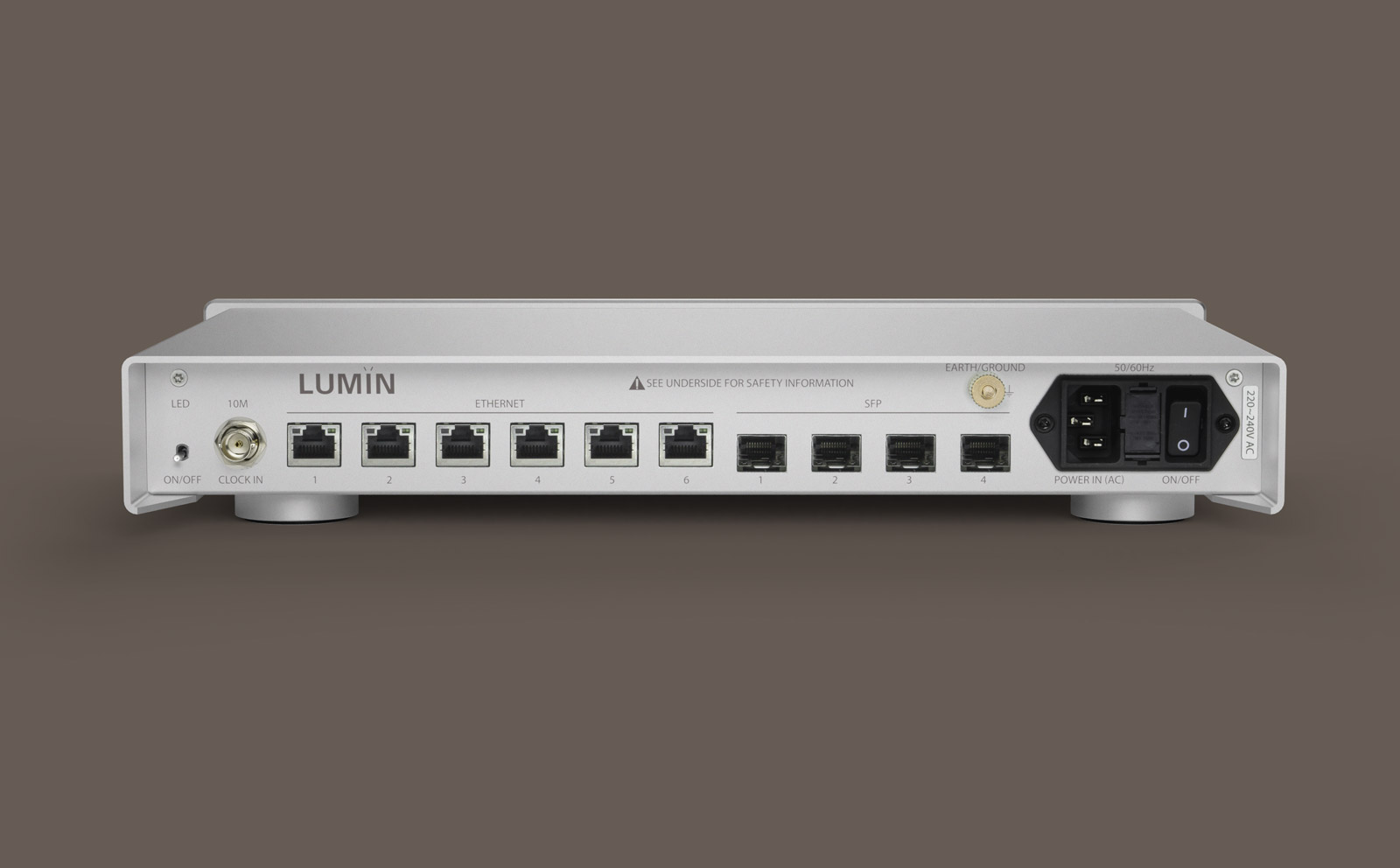

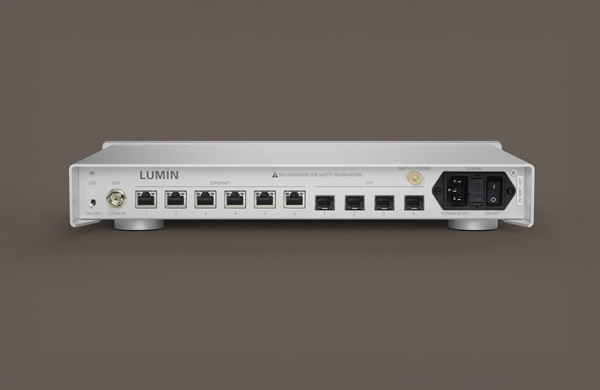

10-port flexibility

4x Fibre SFP ports allow optical fibre networking input and output, completely electrically isolating your sensitive hi-fi components from the rest of your network.

6x Copper RJ45 ports provide the flexibility and convenience of connecting all your equipment to the same hub avoiding cheap (and electrically noisy) consumer switches around your hi-fi and providing rock-solid wired connections for maximum stability.

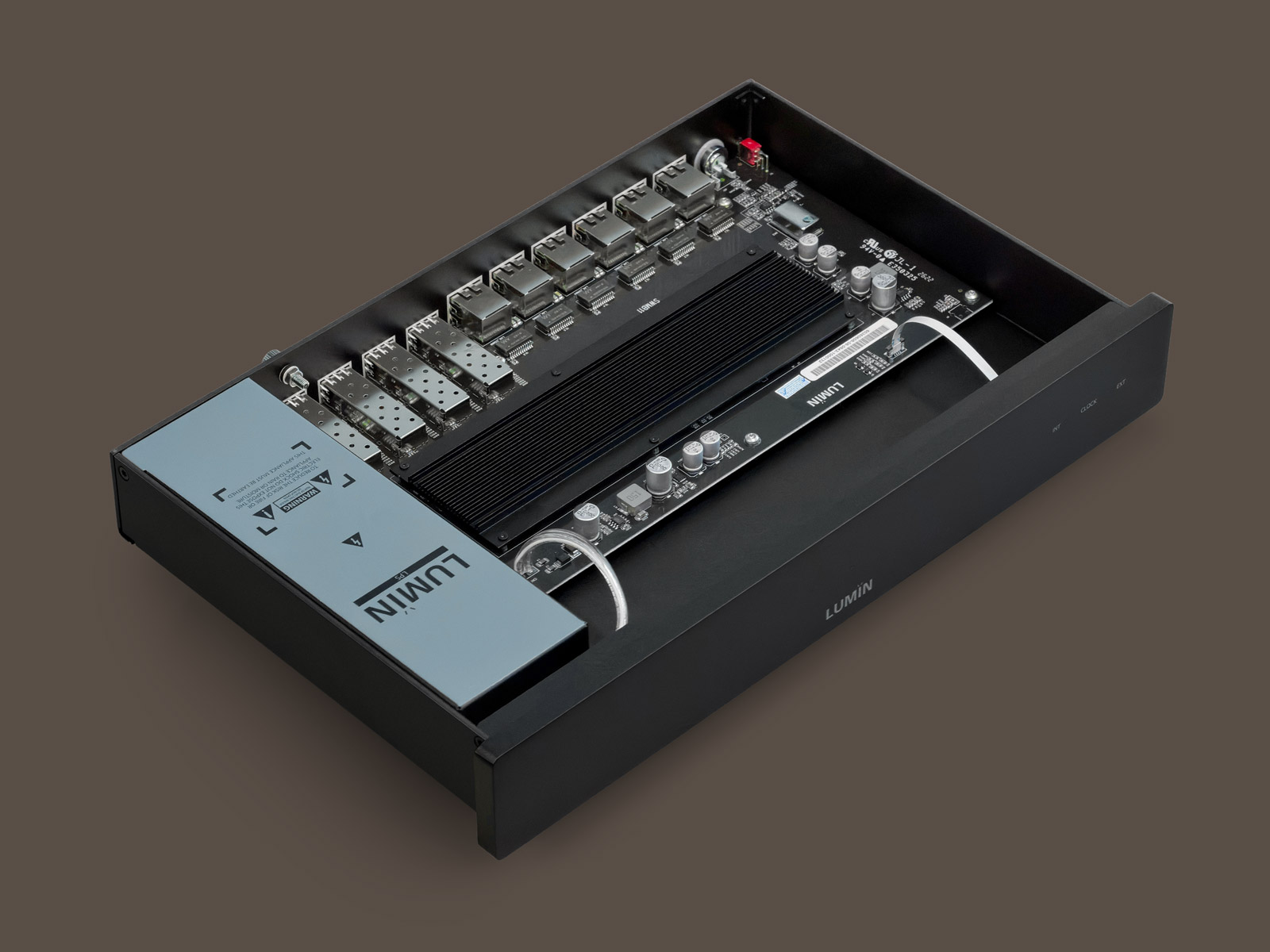

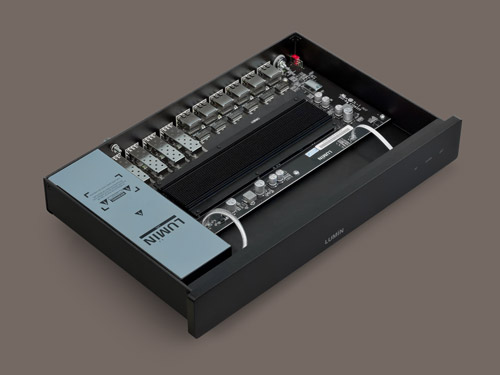

Internal ultra-low-noise linear power supply

Derived directly from our award-winning U2 and T3X, this extra large toroidal transformer continues the low-noise focus that is found throughout LUMIN N1.

Unlike standard network switches that rely on noisy external adapters, LUMIN N1 houses its high-performance linear power stage within a shielded compartment to ensure zero interference with delicate network signals.

External 10M Clock input

While LUMIN N1 features a high-stability internal clock, the 10MHz BNC input allows synchronisation with an external master clock.

Ideal for use with clock output from LUMIN U2X or a 3rd party master clock, this synchronisation can provide system-wide coherence, operating on a low-jitter, unified timing reference.

Specification

LUMIN N1 Specification

  • Included in the box:

      • LUMIN N1 Network Switch
      • Power Cable (IEC cable for your country’s power supply)
      • 2x SFP LC Modules
      • Optical Network Cable
      • RJ45 Ethernet Cable
      • Quickstart Guide
      • Safety Information

  • Network Connections:

    • 6x Gigabit Ethernet Network (1000BASE-T) RJ45
    • 4x Industry-standard Gigabit SFP

  • 10M Clock Input:

    • 50 Ohms on BNC

  • Power Supply:

    • Internal toroidal linear
    • Low-noise linear regulator
    • Shielded power supply compartment for reduced interference with delicate electronics

  • Physical:

    • Finish:

      • Black anodised aluminium
      • Raw anodised aluminium

      Dimensions

      • 360mm (W), 236.5mm (D), 60.5mm (H), 2.5kg
