Nine
inputs
Dual DAC
ES9038PRO
Latest
Processor
Femto
Clock
AV HDMI
Passthrough
Fibre
Network

Why LUMIN P2

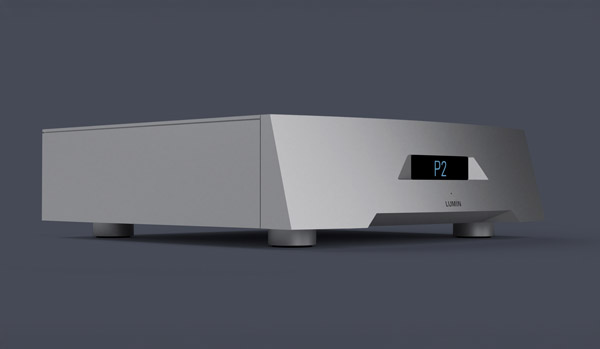

Building on the multi-award-winning foundation of P1, LUMIN P2 establishes a new reference for our 'Network Music Hub' family.

By combining our latest high-capacity processor with a flagship Dual ES9038PRO DAC stage, we’ve increased both processing headroom and precision.

This increased precision is supported by a dual-toroidal power supply and Lundahl output transformers, providing the high-current, isolated foundation required to maintain signal integrity from input to output.

It is the definitive 'all-in-one' — a world-class streamer, DAC, and pre-amplifier in a single, uncompromised chassis.

Main features

LUMIN P2 makes system integration easier than ever:

  • 9 digital & analogue inputs
  • USB digital audio input & output support up to Native DSD512
  • Balanced & unbalanced analogue inputs
  • SPDIF & AES input support up to 192/24 & DoP
  • HDMI 2.0 inputs & 4K passthrough with ARC support

Specified for exceptional musical performance:

  • New processor delivers native DSD512 & PCM384 playback
  • Dual Mono design throughout maximises channel separation
  • Dual ES9038PRO SABRE DACs in Mono mode
  • Femto Clock System with precision FPGA distribution
  • New integrated dual-toroidal linear power supply & all-in-one chassis
  • Fibre Network provides complete isolation from network digital noise
  • Leedh Processing lossless volume control

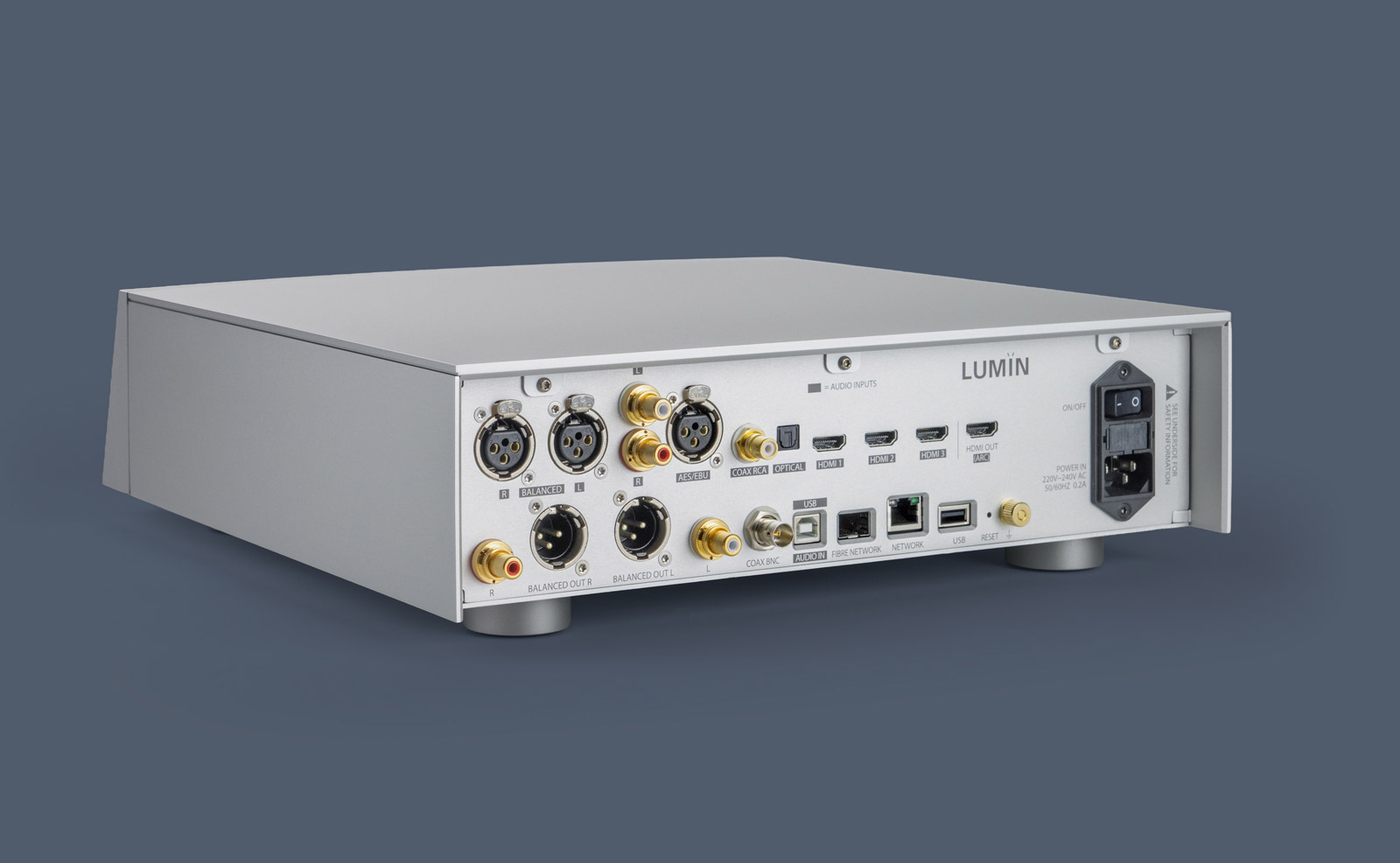

9 digital & analogue inputs

P2 features a total of 9 inputs provide enough flexibility for any audio or video stereo system:

USB

  • Industry-leading XMOS USB audio controller
  • Native DSD512 and PCM384 compatible
  • Windows 10 & Mac OS compatibility

Analogue

  • Balanced and Unbalanced analogue input
  • LEEDH volume processing
  • Passthrough function for home cinema integration with custom naming functionaity

SPDIF/AES

  • DoP64 / 192 kHz 24-bit compatible
  • TOSLINK, SPDIF (RCA), AES inputs

HDMI

  • HDMI 2.0 Specification compatible
  • Supports 2.0 PCM audio decoding
  • HDR, Dolby Vision, Dolby Atmos, DTS passthrough
  • ARC compatible output
  • ARC CEC volume and mute control

X-Series Heritage

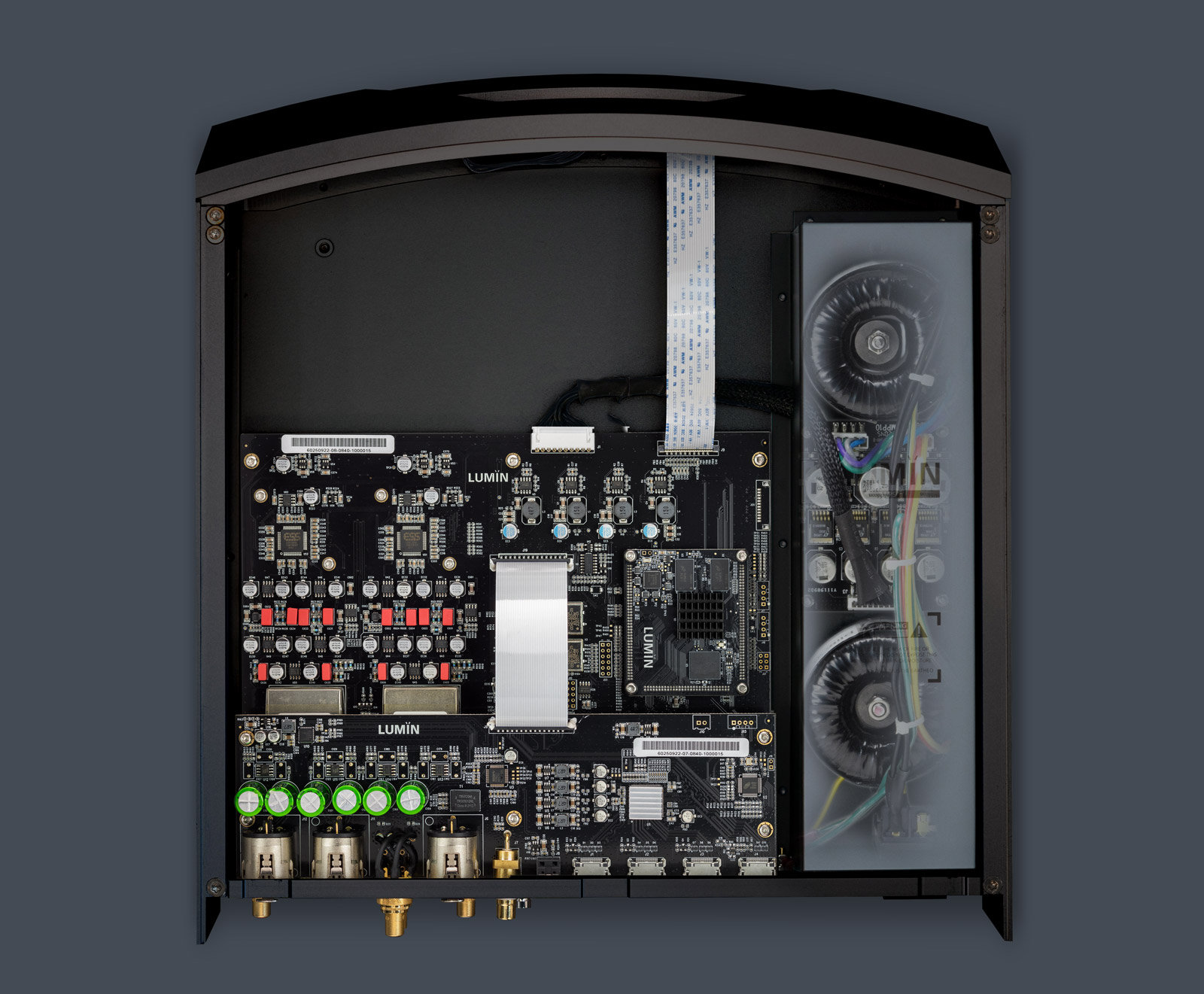

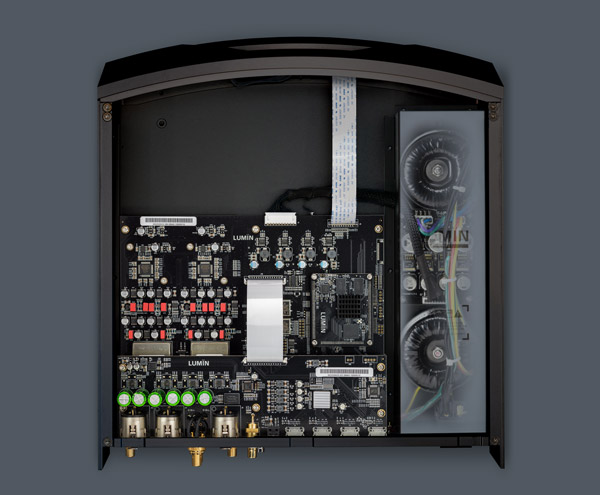

LUMIN P2 inherits the core engineering found in our flagship series, combining high-performance digital architecture with our most refined analogue stages.

Dual ESS SABRE ES9038PRO

LUMIN P2 utilises these top-of-the-range 32-bit, 8-channel DAC chips in a dual-mono configuration. By dedicating a flagship-tier DAC to each channel, we maximise hardware precision and processing headroom. This represents our most advanced implementation of the SABRE platform, providing a robust digital foundation for the entire system.

Output Buffer Design

The fully balanced dual-mono analogue output stage features the same Lundahl transformers found in our top-tier players. This design has been a cornerstone of every flagship LUMIN model, ensuring maximum signal isolation and integrity.

Dual-toroidal Power Supply

The generous P2 chassis allows us to bring the X-series specification toroids inboard for a streamlined, single-box installation. This layout retains all the performance benefits of separate analogue and digital power rails while achieving a cleaner, more integrated aesthetic.

Included Remote Control

Our tactile infrared remote control allows easy change of input, volume adjustment, playlist navigation and more.

The exceptionally well-constructed acrylic and zinc LUMIN remote is made in Austria and is entirely Roon Ready.

The infrared receiver built in to LUMIN P2 is compatible with universal remote controls, phones and automation systems.

Flexible setup options

Use as a streamer, a DAC, a pre-amplifier or all three!

Option 1 - Streaming DAC

LUMIN P2 can be used like all other LUMIN players. With its ES9038PRO DAC chips, DSD512/PCM384 support, Femto Clock System, Fibre Networking, toroidal power supply, and Leedh Processing, P2 is second only to LUMIN X2 in pure streaming ability.

Option 2 - Hi-Fi Hub

Connect all your stereo sources to LUMIN P2 and attach a power amplifier and you've got everything you need for an incredible music system.

Option 3 - 2-channel TV System

No need for an AV Receiver. Simply attach your HDMI sources to LUMIN P2 and P2 to your TV. With HDMI ARC, all your audio comes through your main speakers.

The perfect partnership

Pairing LUMIN P2 with the LUMIN Amp creates a streamlined, ultra-high-performance audio system.

By eliminating a traditional pre-amplifier, you remove an entire stage of electronics that often adds noise and coloration, bringing you closer to the original recording.

Leedh Processing lossless volume control ensures that even at low listening levels, your music retains its full dynamic range and detail, making a separate analogue pre-amp redundant.

Use LUMIN P2 as your system's hub to manage nine digital and analogue inputs, with seamless switching through the Lumin App

The LUMIN Amp's high input impedance is specifically designed to be driven directly by LUMIN sources, maximizing the transparency of LUMIN P2’s dual-mono DAC design.

Latest processing system

LUMIN P2 features our latest processing platform, providing a significant increase in capacity and resampling flexibility.

This extra headroom allows for more flexible upsampling options for every supported format and ensures that P2 is future-ready for years of firmware enhancements.

Supported Streaming Services

TIDAL TIDAL Connect Qobuz Qobuz Connect Amazon Music Roon Spotify Plays with Audirvana JPLAY Certified KKBox QQMusic Plex MQA AirPlay-compatible TuneIn Multi-Room

Leedh Processing Digital Volume Control

Leedh-processing Read more

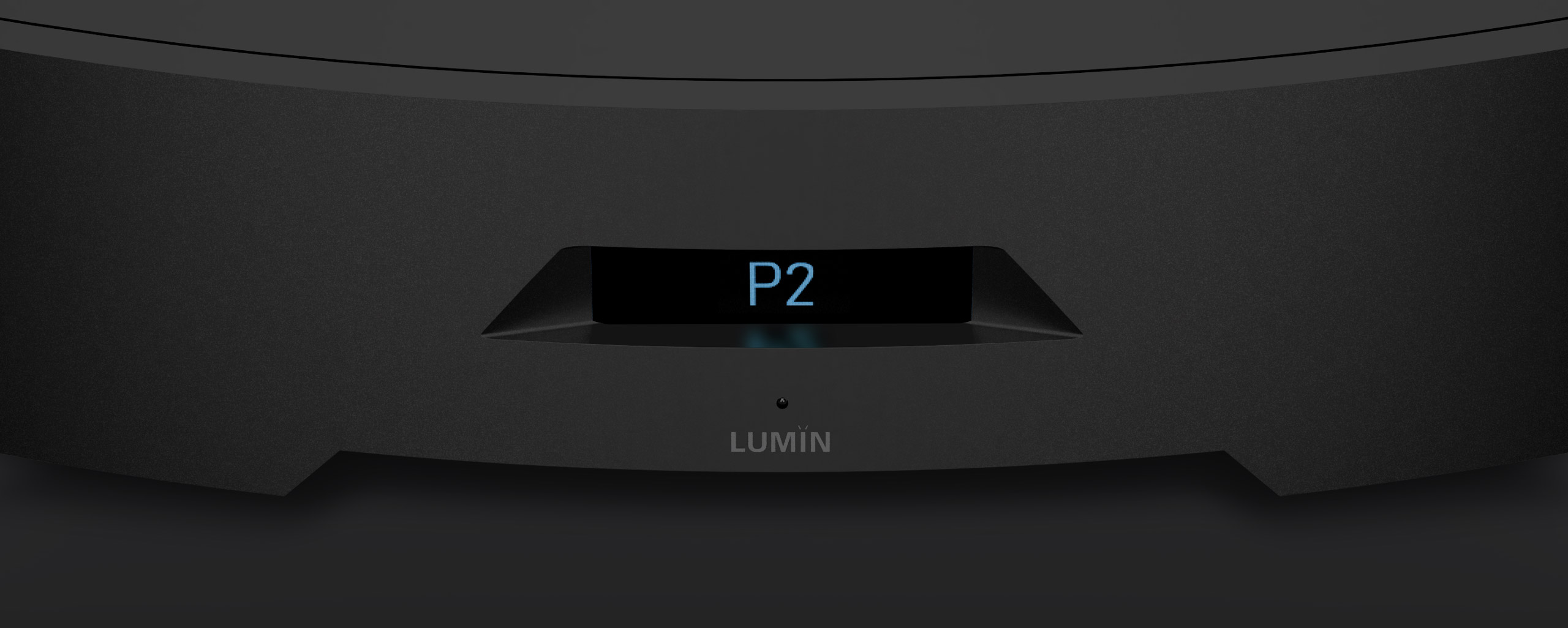

LUMIN P2

Specification

P2 Specification highlights

  • Network playback:

    • Up to DSD512
    • Up to 384 kHz, 16–32-bit, Stereo
    • MQA Full Decoding

  • Upsampling rates & bit depths:

    • DSD256 upsampling option for all files
    • PCM 384kHz upsampling option for all files

  • Digital Input:

    • USB:
      • USB Audio Class 2 Compatible
      • WINDOWS 10 (Release 1703 or above) / Mac OSX or above
      • DoP 128 support
      • PCM 44.1–384 kHz, 16 / 32-bit, Stereo
    • AES/OPTICAL/SPDIF:
      • PCM 44.1 kHz–192 kHz, 16–24-bit
      • DSD64 (DoP64, DSD over PCM)
    • HDMI x3:
      • PCM 2.0 Audio support
      • 4K Video Passthrough

  • Digital Output:

    • USB:
      • Native DSD512 support
      • PCM 44.1–384 kHz, 16–32-bit, Stereo
    • BNC SPDIF:
      • PCM 44.1 kHz–192 kHz, 16–24-bit
      • DSD64 (DoP64, DSD over PCM)
    • HDMI x1:(HDMI Passthrough and ARC support)
      • PCM 2.0 Audio support
      • 4K Video Passthrough
      • ARC (Audio Return Channel) support
      • ARC CEC volume and mute control

  • Analogue Input:

    • RCA Unbalanced x1
    • XLR Balanced x1

  • Analog Output:

    • Dual ESS SABRE32 ES9038Pro DAC chips
    • Fully balanced layout with high-quality components
    • Output connectors coupled with dual LUNDAHL LL7401 output transformers
    • Femto Clock System with precision FPGA distribution

  • Optical Network:

    • Industry-standard Gigabit SFP
    • 1000Base-T Gigabit Ethernet
    • Adapter may be needed for your particular switch/cables
    • Use simultaneously with RJ45 (e.g. connect one to router and one to LUMIN L1 or NAS)

  • Power Supply:

    • Internal dual-toroidal
    • Separate digital & analogue circuitry
    • Low-noise linear regulator

  • Physical:

    • Finish:

      • Black anodised aluminium
      • Raw aluminium

      Lumin (solid aluminium chassis):

      • 350mm (W), 380mm (D), 107mm (H), 12kg

Specification for all current-gen LUMIN streamers

  • Streaming Protocol:

    • UPnP AV protocol with audio streaming extension (OpenHome)
    • Roon Ready
    • Qobuz Connect
    • TIDAL Connect
    • Spotify Connect
    • Flac lossless Radio stations
    • Plāys with Audirvāna
    • JPLAY Certified
    • AirPlay-compatible
    • QPlay-compatible for QQMusic
    • Gapless Playback
    • On-Device Playlist

  • App Features:

    • Native support for TIDAL, MQA, Qobuz and TuneIn Radio.
    • Tidal MAX and MQA icons to identify high-res music
    • Qobuz high-res icons to identify high-res music
    • Volume control
    • High-resolution artwork
    • Artwork caching
    • Search
    • Multiple tag handling
    • Composer tag support
    • Album-grouping in playlist
    • Automatic internet links to artists/album/songs
    • Saving and restoring of playlists (including Tidal and Qobuz)

  • Supported Audio File Formats:

    • DSD Lossless: DSF (DSD), DIFF (DSD), DoP (DSD)
    • PCM Lossless: FLAC, Apple Lossless (ALAC), WAV, AIFF
    • Compressed (lossy) Audio: MP3
    • MQA

  • Input:

    • Gigabit Ethernet Network (1000BASE-T) RJ45
    • Shared USB port can also be used for storage, flash drive, USB hard disk (Single-partition FAT32, exFAT and NTFS only)

  • Analogue Audio Outputs:

    • XLR balanced, 6Vrms, pin 2 Hot
    • RCA unbalanced, 3Vrms

  • Supported Control Devices:

    • Apple devices. iOS 11.0 or later (List of supported devices)
    • Android devices. Android 6.0 (Marshmallow) or later required
    • Apple Silicon. macOS 11 or later. (Download the iOS App from the iOS App Store)
    • Chromebook. Google Play Store required.

  • Other:

    • Leedh Processing lossless digital volume control
    • MQA QRONO d2a filters available for all PCM music (excluding via AirPlay)
    • Programme of Continuous Development – Firmware-upgradable for further features and enhancements
