U2X Specification
-
DSD Support:
- Up to DSD512 22.5MHz, 1-bit
-
PCM Support:
- Up to 768kHz, 16–32-bit, Stereo
-
Upsampling rates & bit depths:
- DSD256 upsampling option for all files
- PCM 384kHz upsampling option for all files
-

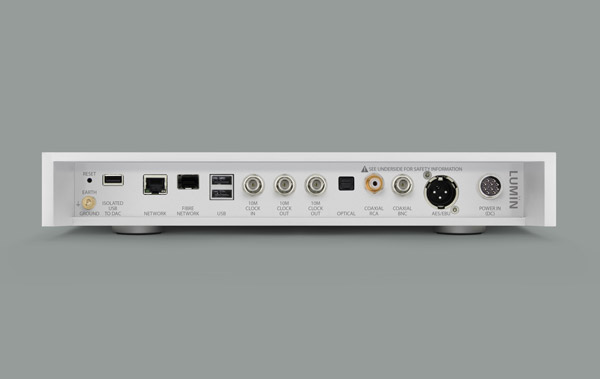

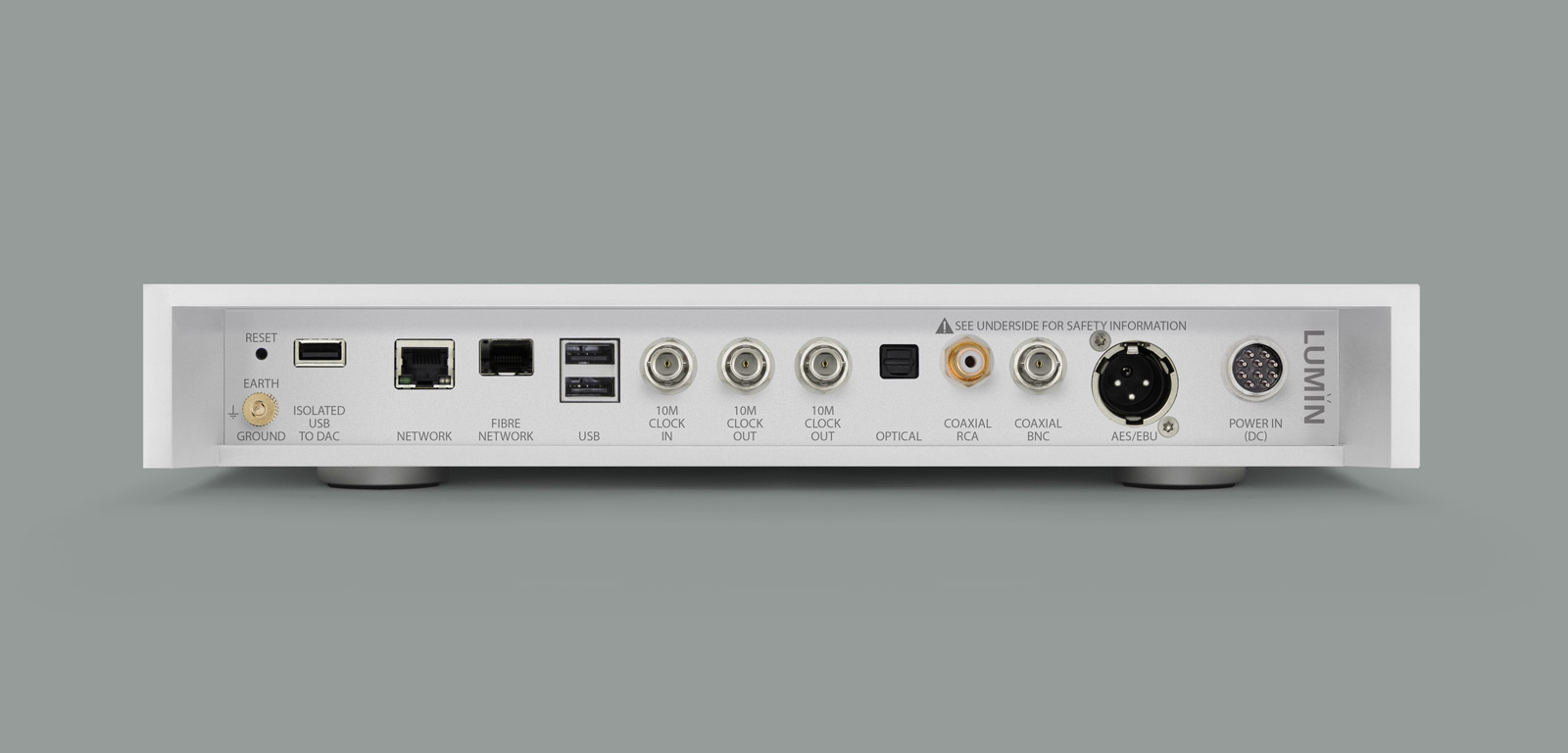

Digital Output Stage:
-
Isolated USB:
- Native DSD512 support
- PCM 44.1–768kHz, 16–32-bit, Stereo
-
Optical, Coaxial RCA, Coaxial BNC & AES/EBU:
- PCM 44.1kHz–192kHz, 16–24-bit
- DSD (DoP, DSD over PCM) 2.8MHz, 1-bit
-
-
10M Clock I/O:
-
BNC Input:
- 50 Ohms on BNC
-
BNC Outputs:
- 50 Ohms on BNC
-
-
Optical Network:
- Industry-standard SFP
- 1000Base-T Gigabit Ethernet
- Adapter may be needed for your particular switch/cables
- Use simultaneously with RJ45 (e.g. connect one to router and one to LUMIN L1 or NAS)
-
Power Supply:
- External solid billet cnc dual-toroidal
- Separate digital & analogue circuitry
- Low-noise linear regulator
- 9-pin Output Connector
-

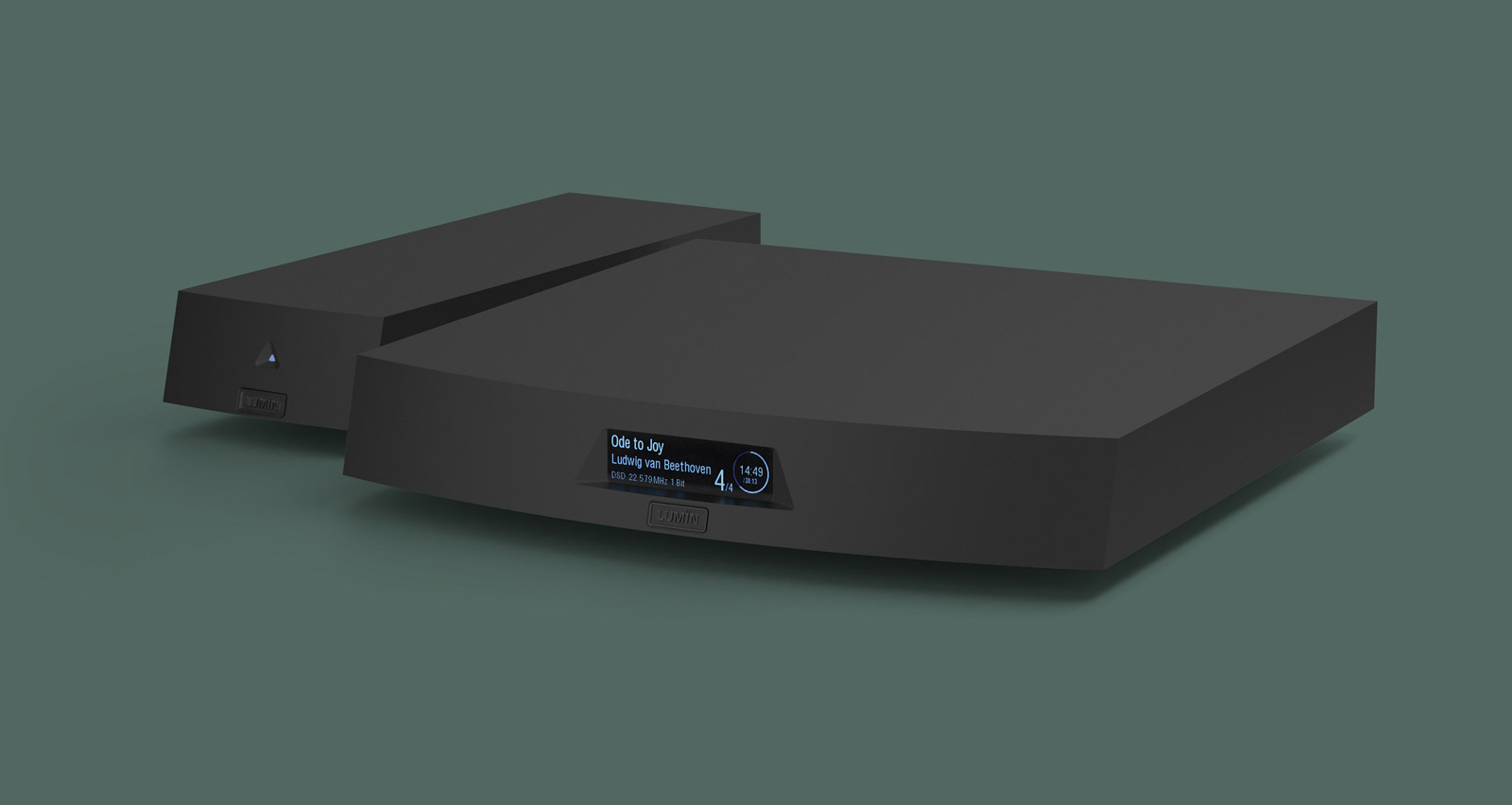

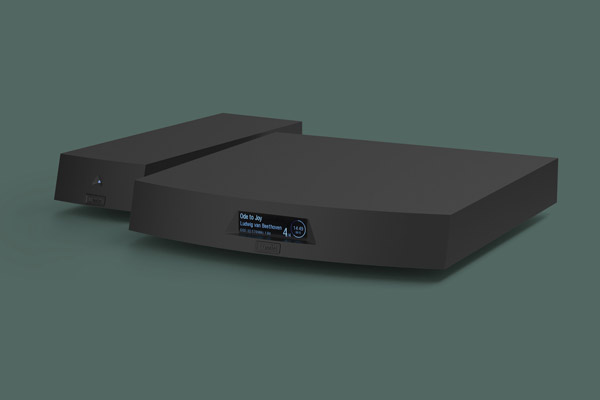

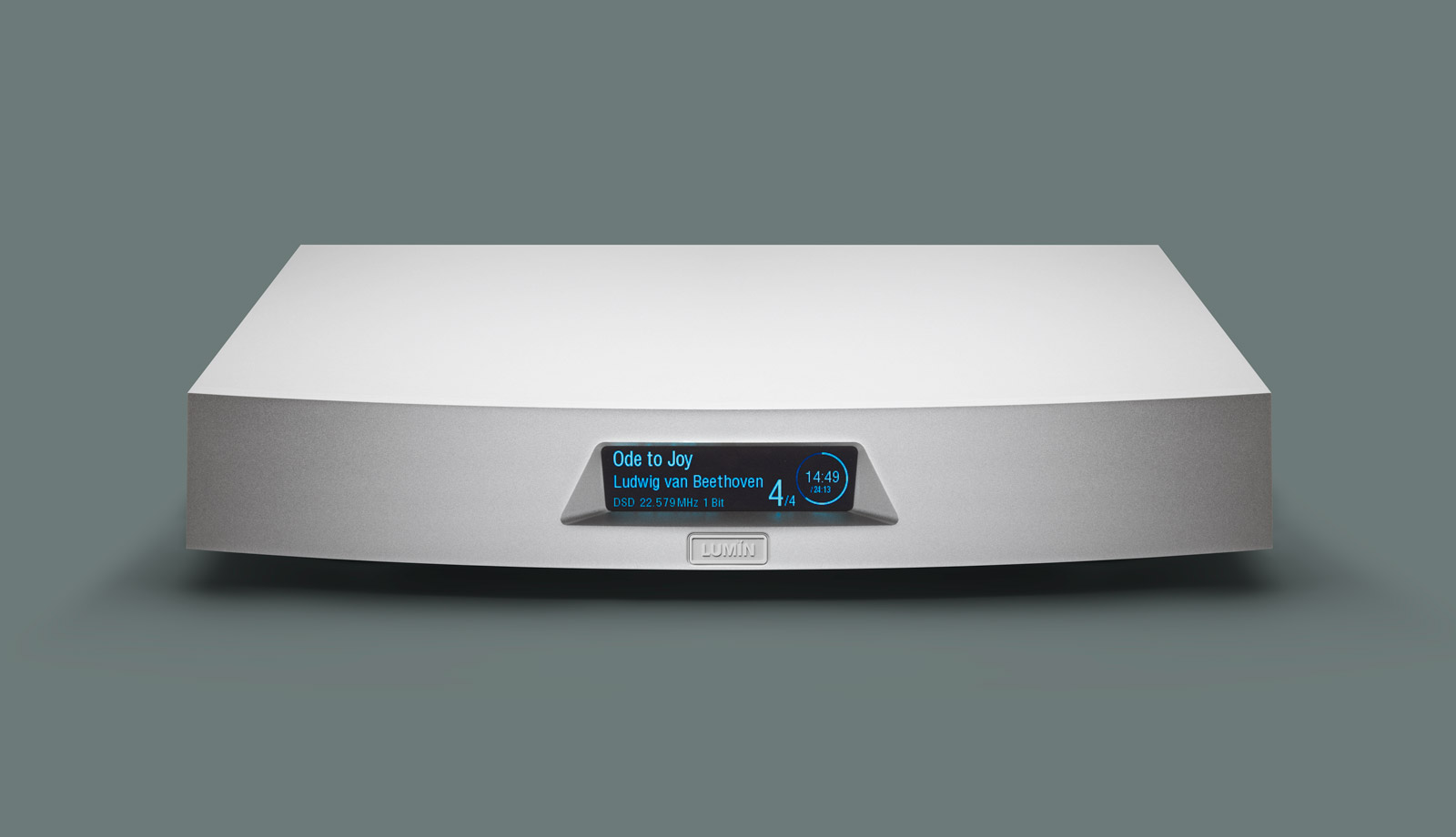

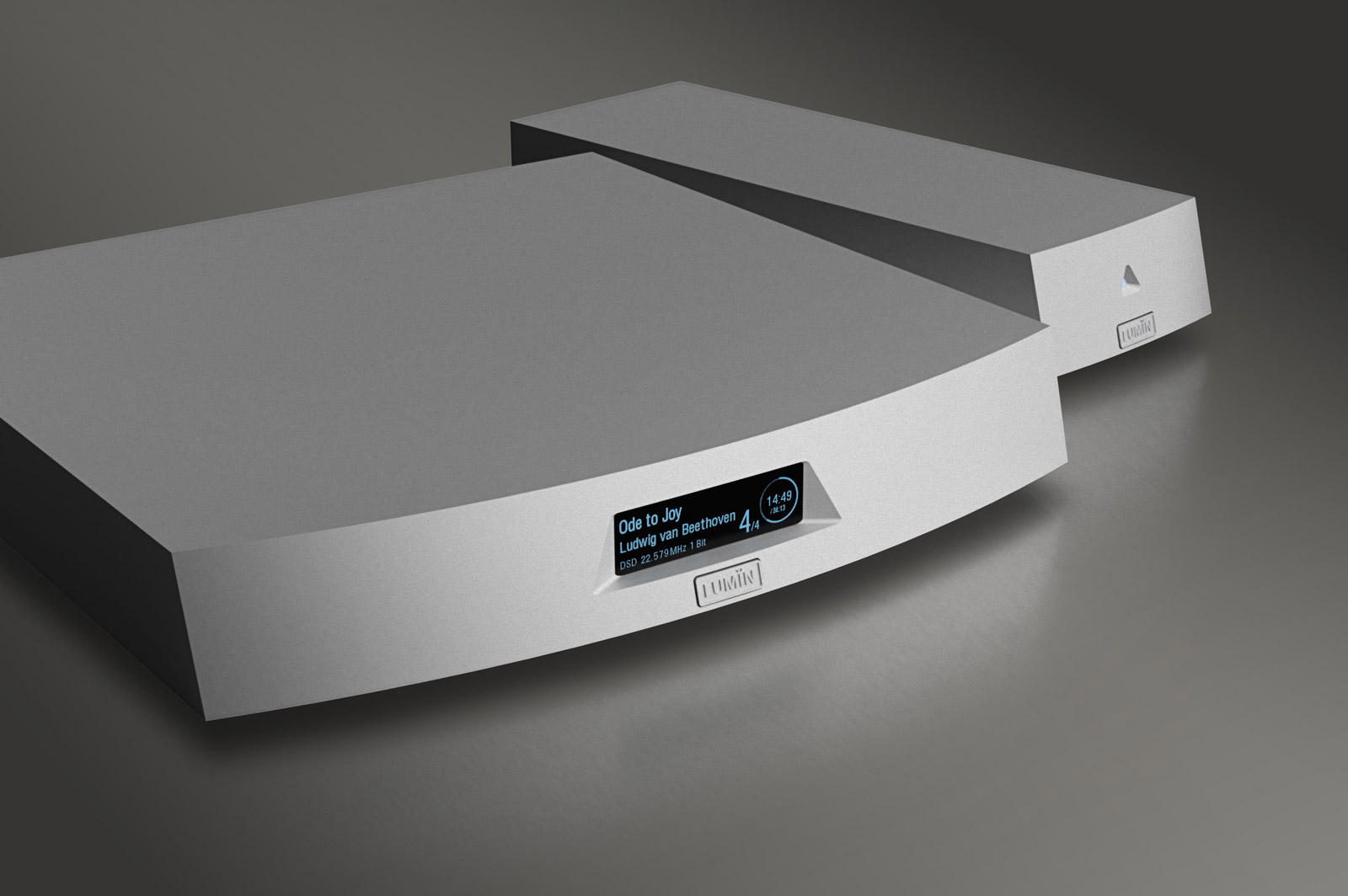

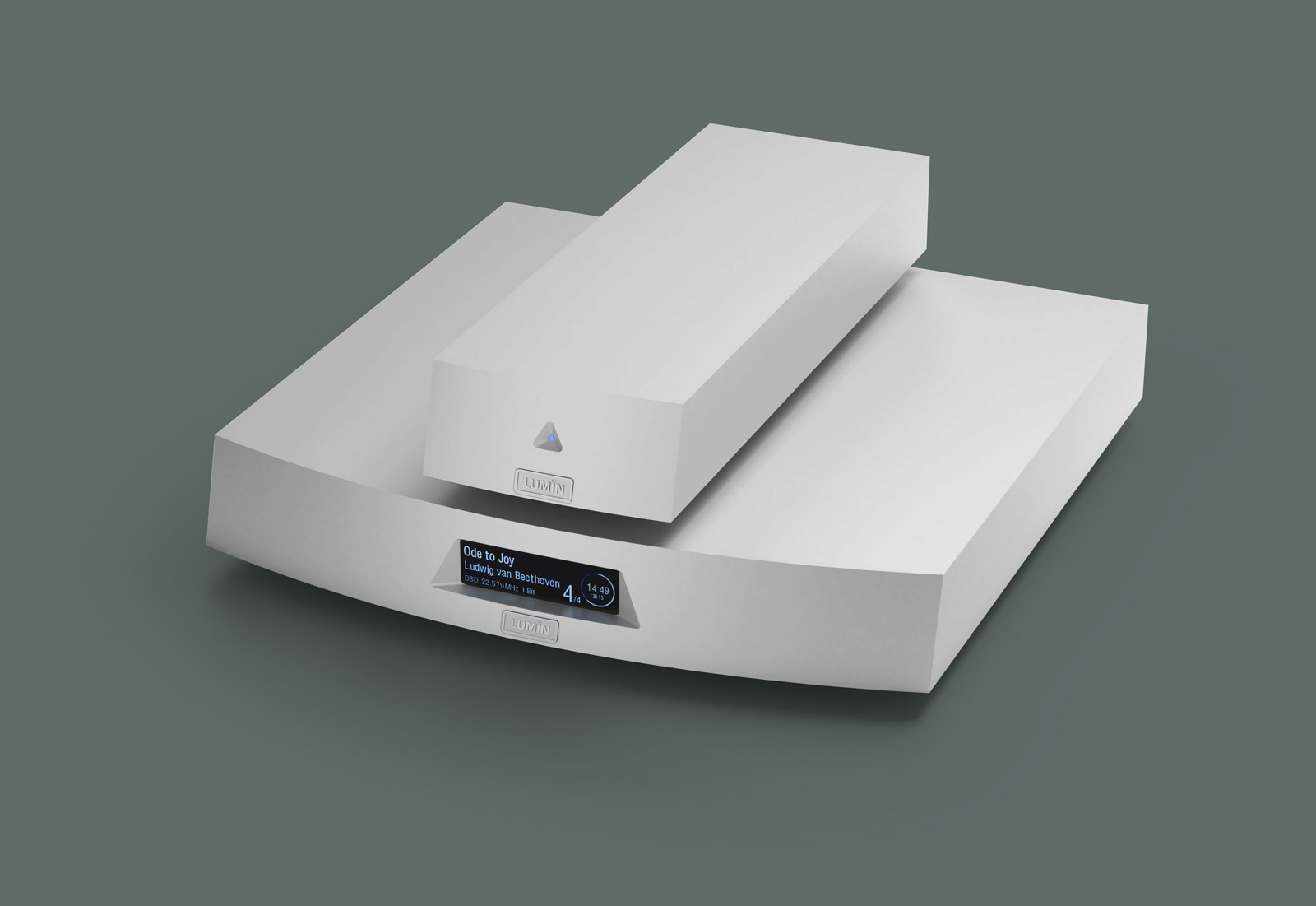

Physical:
-
Finish:

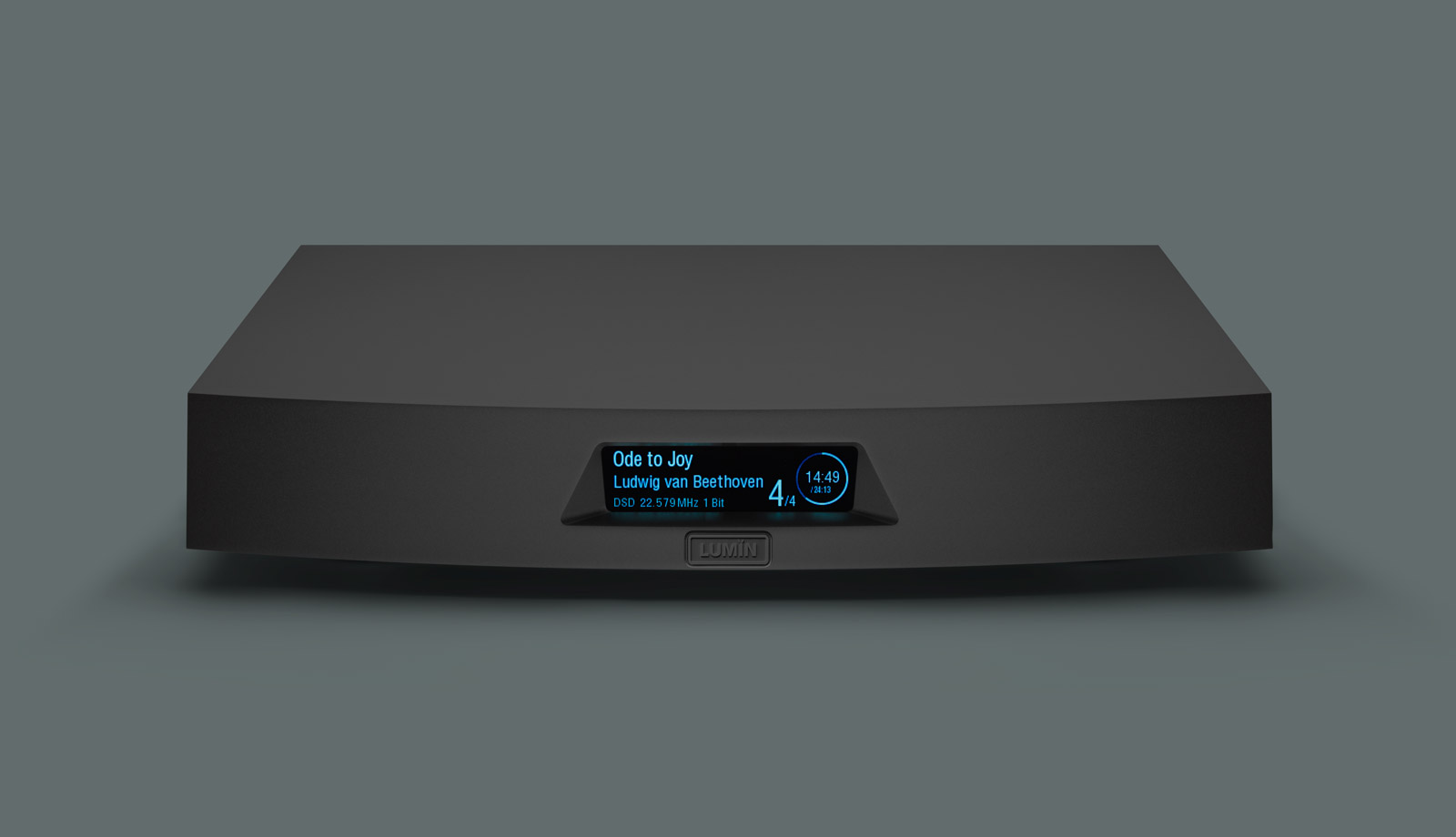

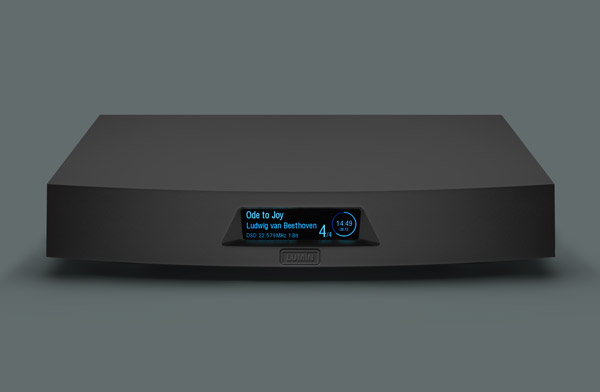

- Black anodised aluminium (with matching PSU)

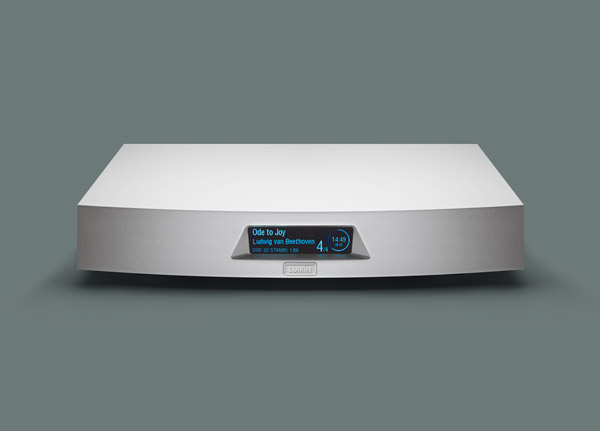

- Raw anodised aluminium (with matching PSU)
Lumin (solid aluminium chassis):
- 350mm (W), 345mm (D), 60mm (H), 8kg
-
PSU (solid aluminium chassis):
- 106mm (W), 334mm (D), 60mm (H), 4kg
-
